FRP Counterflow Cooling Tower (Standard Type)

This standard FRP cooling tower is counterflow designed, and features a round shape. It is an ideal solution for choosing heat rejection devices that depend on specific circulating water, especially if the flow rate requirements are between 10m3/h and 1000m3/h. For more details, please see the following direct heat rejection equipment. If they do not meet your needs, we also offer customization services according to your specific requirements.

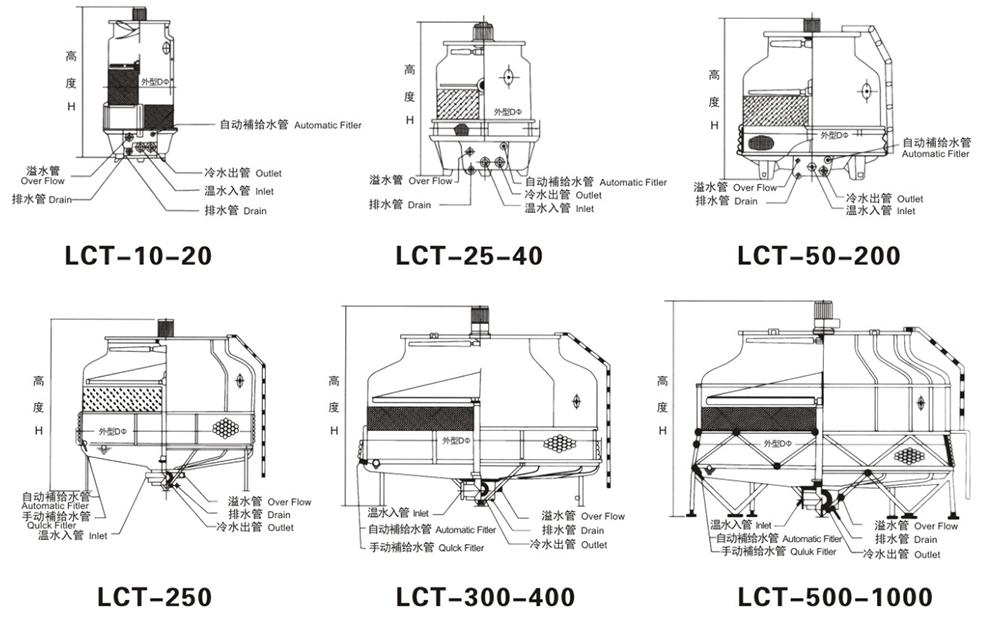

FRP Counterflow Cooling Tower Standard Type
Design condition
  • Inlet water temperature: T1=37℃
  • Outlet water temperature: T2=32℃
  • Wet bulb temperature: TWB=27℃
  • Dry bulb temperature: T=31.8℃
  • Atmospheric pressure: P=9.94×104 Pa
Model Flow Rate (m3/h) Overall Dimension Fan Assembly Piping Size Noise (dB)
WB28℃ WB27℃ Height H Outer Diameter D Motor (hp) Fan Warm Water Inlet Cold Water Outlet Drain Pipe DR Overflow Pipe OF Feed Pipe FV
TWB28℃ TWB27℃
LCT-10 7.2 8.5 1740 1060 1/4 670 40 40 25 25 15 50
LCT-15 10.8 12 1960 1060 1/4 670 40 40 25 25 15 52
LCT-20 14.4 17 2000 1200 1/4 670 50 50 25 25 15 53
LCT-25 18.5 20 2290 1430 1/2 770 80 80 25 25 15 53
LCT-30 21.6 24 2290 1430 3/4 770 80 80 25 25 15 55
LCT-40 28.8 32 2360 1620 1 770 80 80 25 25 15 56
LCT-50 36 40 2595 1810 2 970 80 80 25 25 15 57
LCT-60 43.2 48 2595 2000 2 970 80 80 25 25 15 58
LCT-80 57.6 64 2690 2180 2 1170 100 100 25 25 25 59
LCT-100 72 80 2790 2180 2 1170 100 100 40 25 25 60
LCT-125 90 100 2875 2750 3 1470 100 100 40 25 25 61
LCT-150 108 120 2950 3070 3 1470 125 125 50 25 25 61
LCT-175 126 140 3200 3300 5 1750 125 125 50 50 25 62
LCT-200 144 160 3300 3300 5 1750 125 125 50 50 25 62
LCT-250 180 200 3600 3770 5 1750 150 150 50 50 40 63
LCT-300 216 240 3960 3770 7.5 2400 200 200 50 50 40 63
LCT-350 252 280 4150 4790 10 2400 200 200 50 50 40 63.5
LCT-400 288 320 4150 4790 10 2400 200 200 50 50 40 63.5
LCT-500 360 400 5200 5480 15 3000 250 250 80 80 40 65
LCT-600 432 480 5200 6100 15 3400 250 250 80 80 40 66
LCT-700 504 560 5770 6600 20 3400 250 250 80 80 40 68
LCT-800 576 640 5820 6600 20 3400 250 250 80 80 40 69
LCT-1000 720 800 5920 7600 30 3600 300 300 80 80 40 69
Learn full information of FRP counterflow cooling tower standard type
