FRP Counterflow Cooling Tower (Ultra Low Noise)

The greatest feature of this FRP counterflow cooling tower is ideal for applications with strict requirements about noise control, as it features the lowest noise levels of all of our cooling towers at just 40dB during operation. If the standard products shown here do not meet your needs, please do not hesitate to contact us about customization of counterflow cooling towers to satisfy your requirements.

FRP Counterflow Cooling Tower Ultra Low Noise
Design condition
  • Inlet water temperature: T1=37℃
  • Outlet water temperature: T2=32℃
  • Wet bulb temperature: TWB=27℃
  • Dry bulb temperature: T=31.8℃
  • Atmospheric pressure: P=9.94×104 Pa

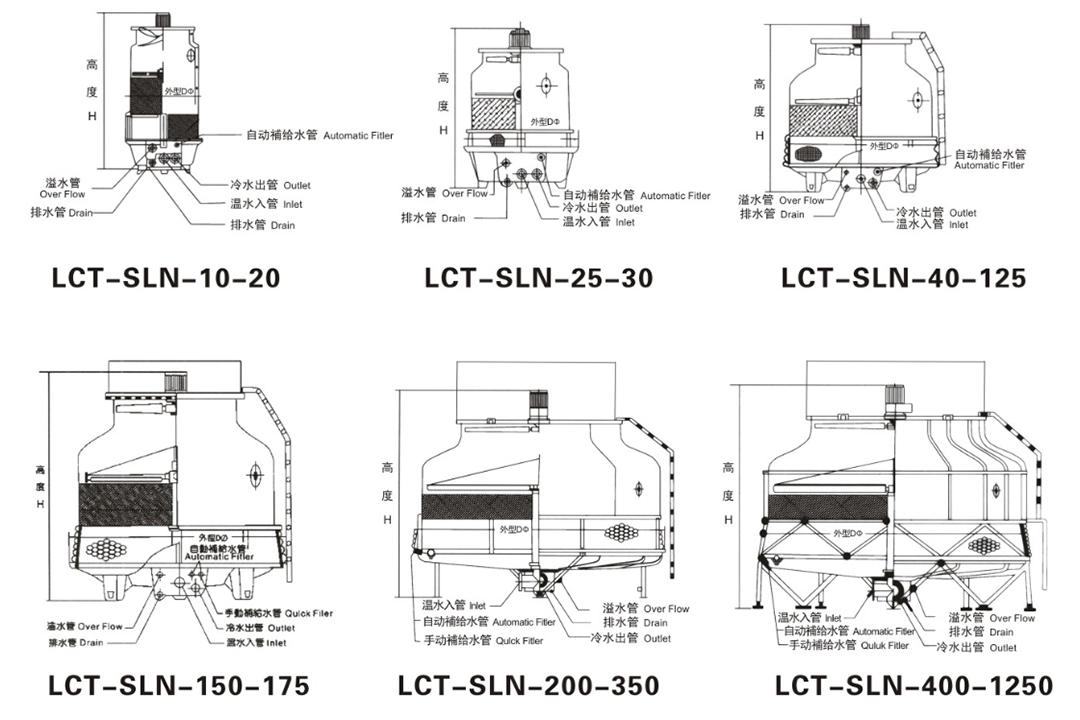

Model Flow Rate (m3/h) Overall Dimension Fan Assembly Piping Size Noise (dB)
WB28℃ WB27℃ Height H Outer Diameter D Motor (hp) Fan Warm Water Inlet Cold Water Outlet Drain Pipe DR Overflow Pipe OF Feed Pipe FV
TWB28℃ TWB27℃
LCT-10SLN 7.2 8.5 2340 1060 1/4 670 40 40 25 25 15 40
LCT-15SLN 10.8 12 2560 1060 1/4 670 40 40 25 25 15 40.5
LCT-20SLN 14.4 17 2600 1200 1/4 670 50 50 25 25 15 41.5
LCT-25SLN 18.5 20 2890 1430 1/2 770 80 80 25 25 15 43.5
LCT-30SLIM 21.6 24 2890 1430 3/4 770 80 80 25 25 15 44
LCT-40SLN 28.8 32 2960 1620 1 770 80 80 25 25 15 45
LCT-50SLN 36 40 3195 1810 2 970 80 80 25 25 15 46
LCT-60SLN 43.2 48 3195 2000 2 970 80 80 25 25 15 46.5
LCT-80SLN 57.6 64 3390 2180 2 1170 100 100 25 25 25 48
LCT-100SLN 72 80 3490 2180 2 1170 100 100 40 25 25 48
LCT-125SLN 90 100 3575 2750 3 1470 100 100 40 25 25 48.5
LCT-150SLN 108 120 3650 3070 3 1470 125 125 50 25 25 49
LCT-175SLN 126 140 4050 3300 5 1750 125 125 50 50 25 50
LCT-200SLN 144 160 4150 3300 5 1750 125 125 50 50 25 50.5
LCT-250SLN 180 200 4450 3770 5 1750 150 150 50 50 40 52.5
LCT-300SLN 216 240 4810 3770 7.5 2400 200 200 50 50 40 53
LCT-350SLN 252 280 5000 4790 10 2400 200 200 50 50 40 53
LCT-400SLN 288 320 5000 4790 10 2400 200 200 50 50 40 53.5
LCT-500SLN 360 400 6200 5480 15 3000 250 250 80 80 40 54
LCT-600SLN 432 480 6260 5580 15 3000 250 250 80 80 40 54
LCT-700SLN 504 560 6770 6600 20 3400 250 250 80 80 40 55.5
LCT-800SLN 576 640 6820 6600 20 3400 250 250 80 80 40 56.5
LCT-1000SLN 720 800 6920 7600 30 3600 300 300 80 80 40 58
Learn full information of FRP counterflow cooling tower ultra low noise
